List of Facilities

1. UV-Vis-NIR Spectrophotometer
(click here to book slot)		 2. Atomic Force Microscopy (AFM) 3. Solar Simulator
(click here to book slot)		 4. Spin coater
5. Keithely Source meter (2400)
(click here to book slot)		 6. Ultrasonicator 7. Four point probe set up 8. Optical Microscope
9. Muffel Furnace 10. Tube furnace 11. Weighing Balance 12. Oven
13. Tensile Testing Machine 14. Euromex Microscope(Image Analyzer)
with Basic Image Software		 15. Contact Angle Meter
(click here to book slot)

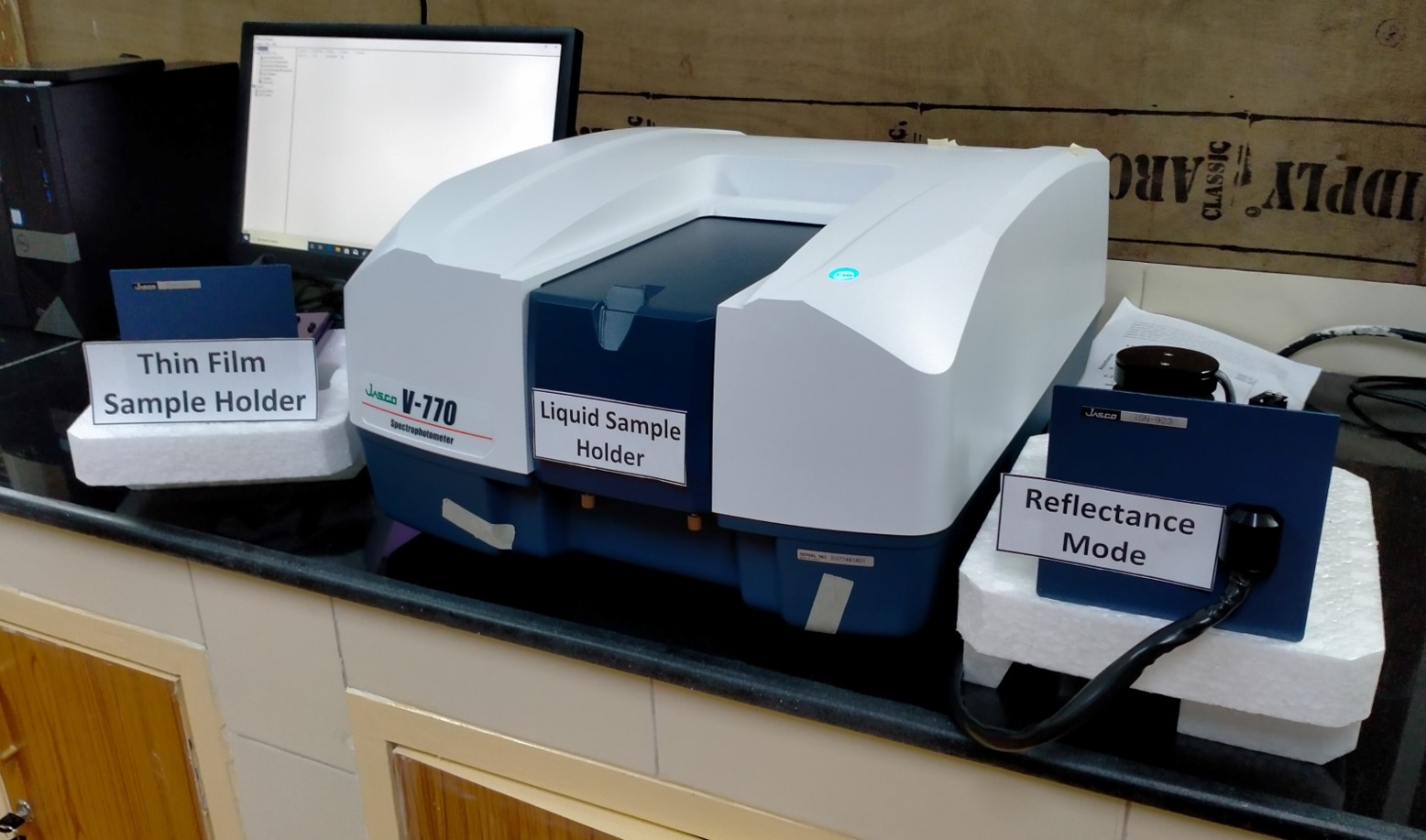

UV-Vis-NIR Spectrophotometer

● Wavelength Range; 190 to 3200 nm

● Light Source; Deuterium Lamp & Halogen lamp

● Detector; Photomultiplier tube, Peltier cooled PbS

● Wavelength scan mode; Abs, %T, %R, Sample, Reference)

● Film holder (sliding mount type) for Transparent Thin film

● Thickness of sample: 0.5 to 25 mm, Sample size (Maximum: 80 x 100 mm Minimum: 5 x 5 mm)

● Integrating Sphere (UV/VIS/NIR);

Inside dia. of Integrating Sphere:60mmφ, Incident Angle to reflection surface; 0°, approx. 5°, Sample Size; Min. (reflection):   20(H)×20(W)×0.5(t)mm & Max. sample size (reflection):65(H)×50(W)×25(t)mm, Wavelength range: 200 - 2500nm

● Sample Holder (Liquid as standard and for Powder Samples)

● Time course measurement, Quantitative measurement and fixed wavelength measurement can be possible with this instrument.

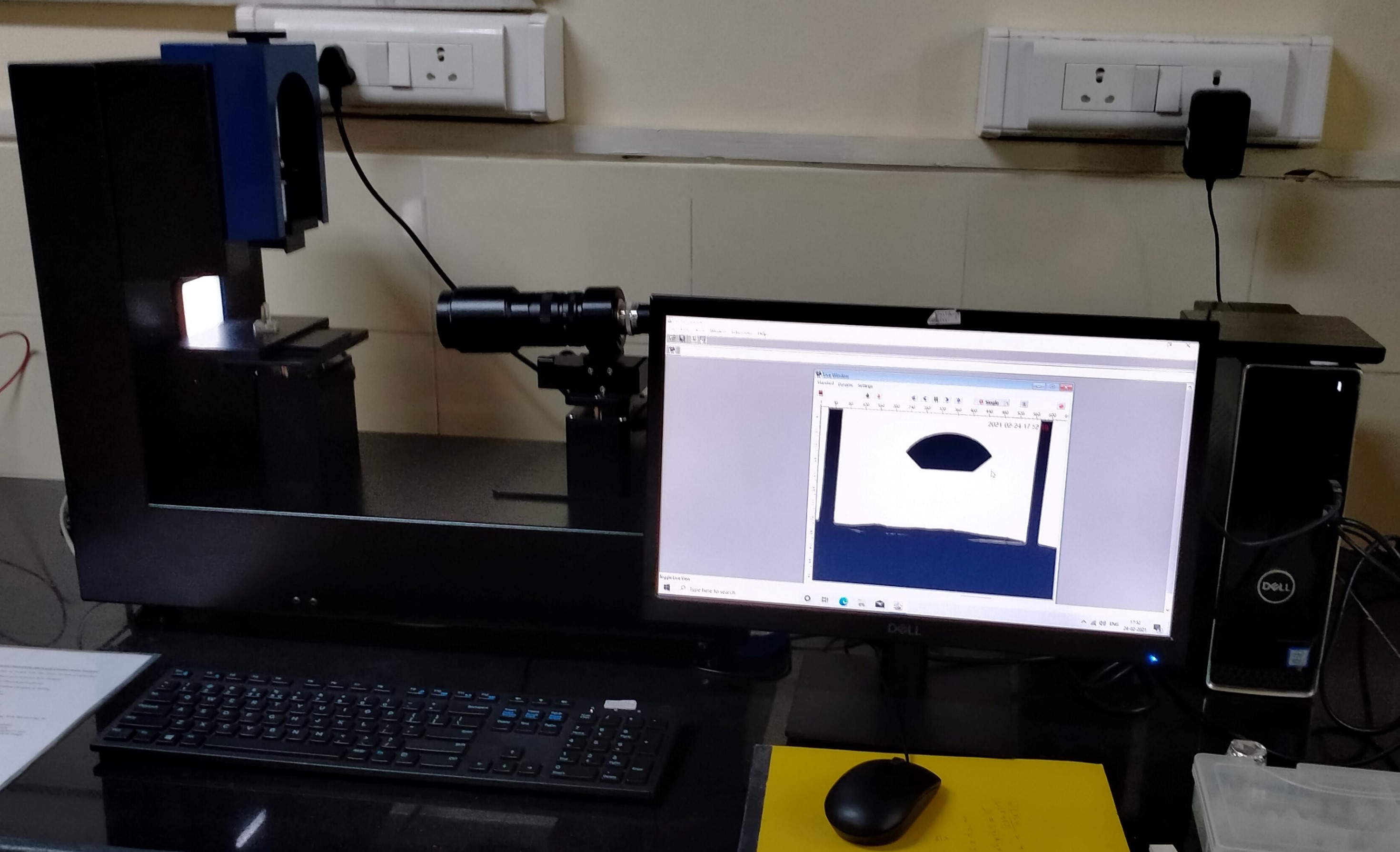

CONTACT ANGLE METER

● Automatic Drop, Software Controlled

● Angle analyzer capable of measuring surface free energy, wettability of solid & other surfaces and     surface tension

● Sessile Drop/Pendent Drop methods

● Static and dynamic (Advancing/Receding) contact angle can be measured

● Precise drop volume adjusts per 1㎕

● Contact Angle Measuring Range from 0.1 to 180° with +/- 0.1°Accuracy

● Reference list for surface energy materials

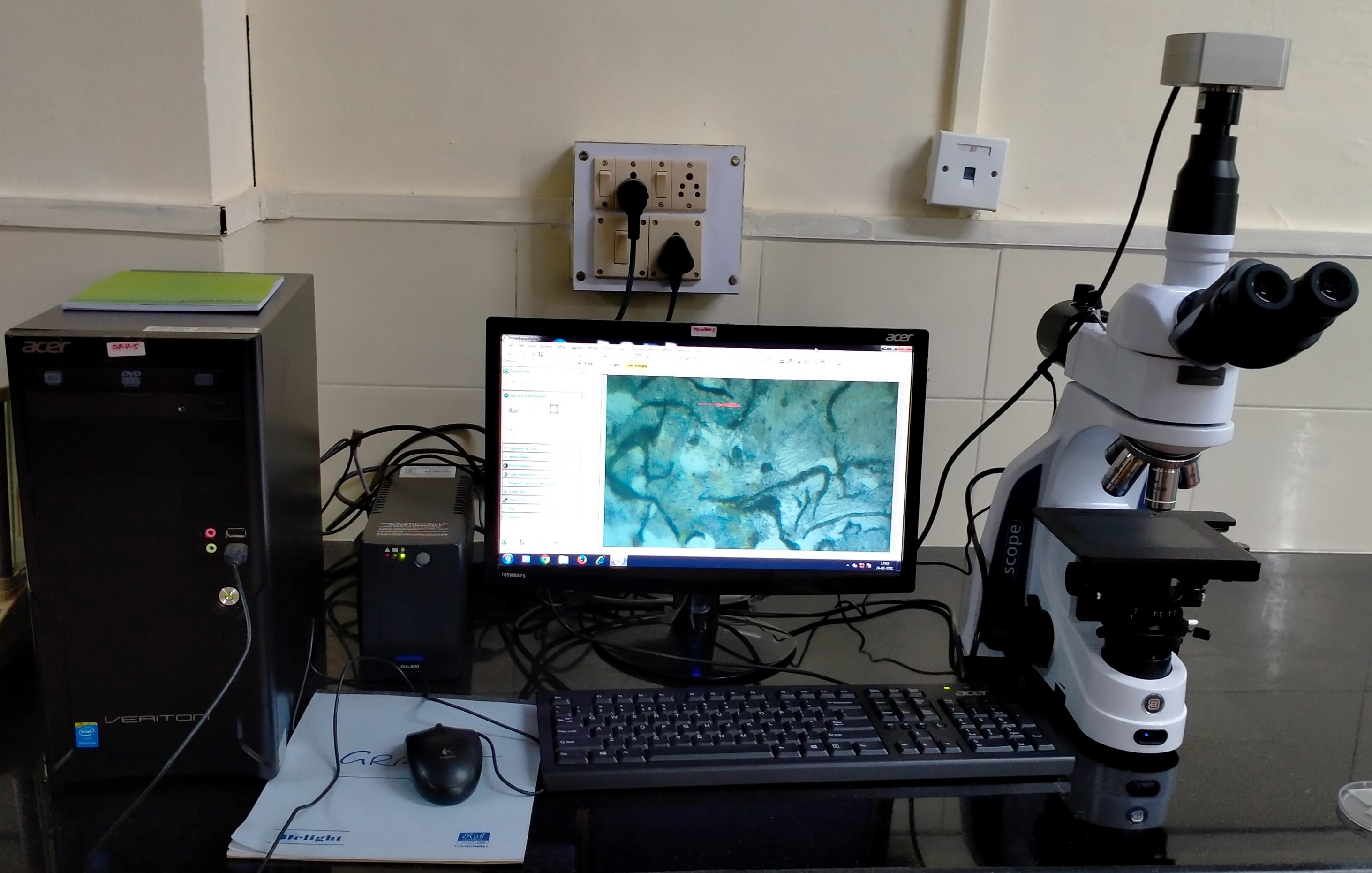

Euromex Microscope(Image Analyzer) with Basic Image Software

● Reflected light Bright field &, Polarization, transmitted light mode is in addition

● Up to 100x Objectives

● 18 Mega Pixel CMOS Camera with pixel size 1.67x1.67 μm With Live display mode can achieve high     frame rate of 32 fps

● Polarization Facility

● Diopter adjustment facility

● The software is capable of performing measurements, segmentation, extended depth of focus &     Image enhancement enabling users to have optimum quality

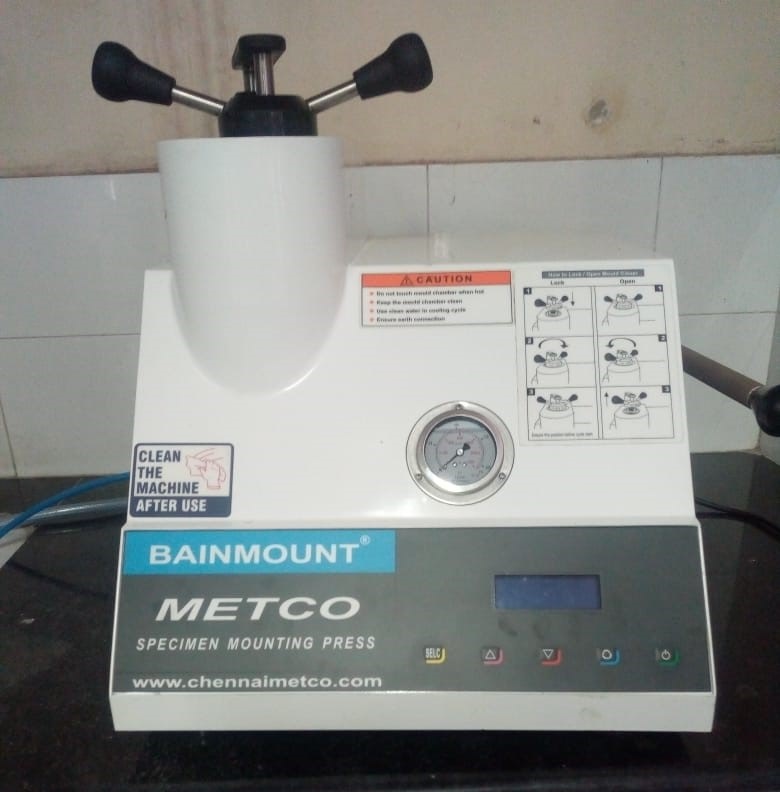

Twin Mould hot mounting press

● Manufacturer name: Chennai Metco

● Model: BAINMOUNT-H

● BAINMOUNT-H is a high speed mould heater with built-in water cooling coils along with built in     hydraulic system.

● 1200 Watts Mould Heater

● Provision to accommodate two moulds at a time

● Digital Temperature indicator and controller

● Timer and buzzer for Heating and Cooling cycles

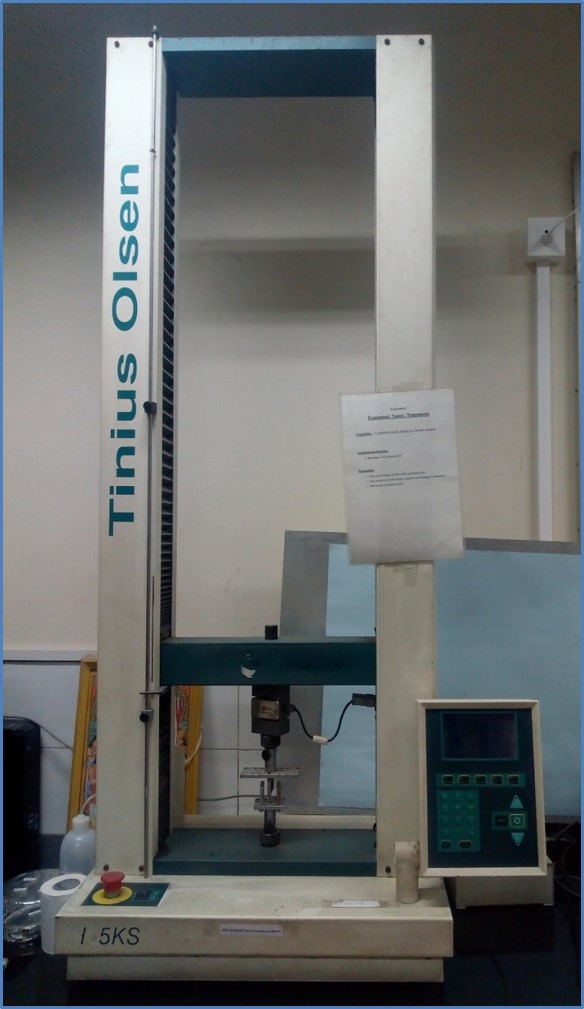

Tensile Testing Machine

● Manufacturer name: Tinius Olsen

● Maximum Load: 25 kN

● Can be used for: Samples of metals, plastics, rubber etc

● Speed range: 0.001 to 1000 mm / min

● Frame stiffness:100 kN / mm

● Used for: Testing various materials for tensile, fracture strength, etc

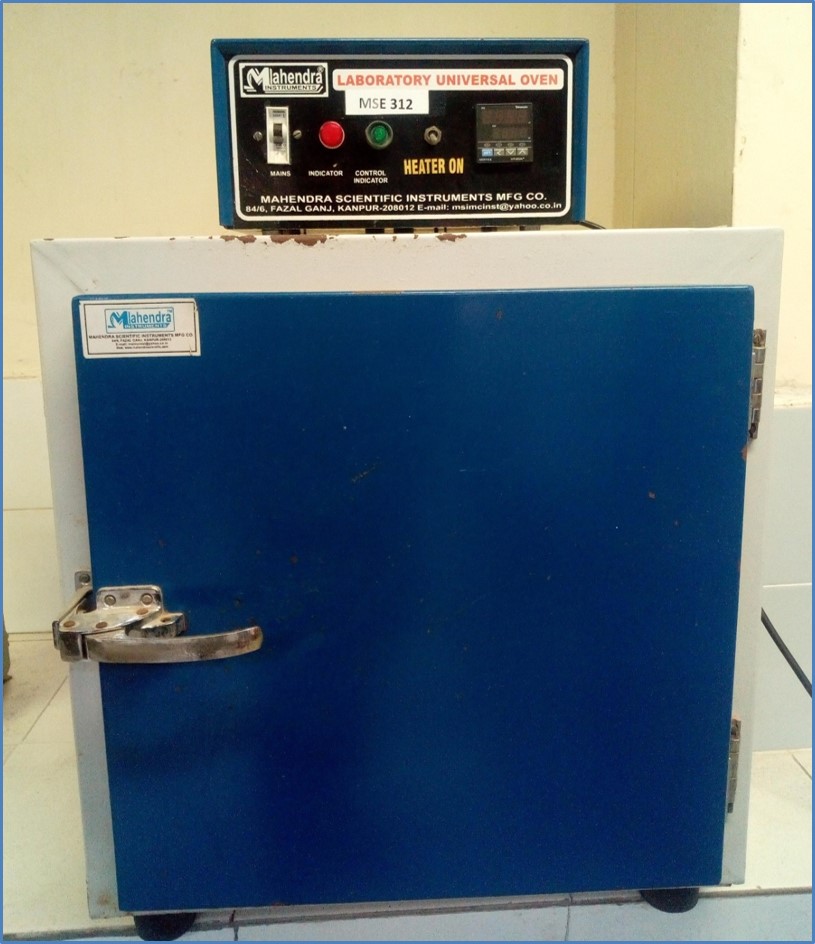

Heating Oven

● Manufacturer name: Mahendra Scientific Instruments

● Operating temperature upto 250°C

● Programmable heating and cooling cycles

● Control: Digital Auto Temp Control Panel

● Voltage: 220 V

● Frequency: 50 Hz

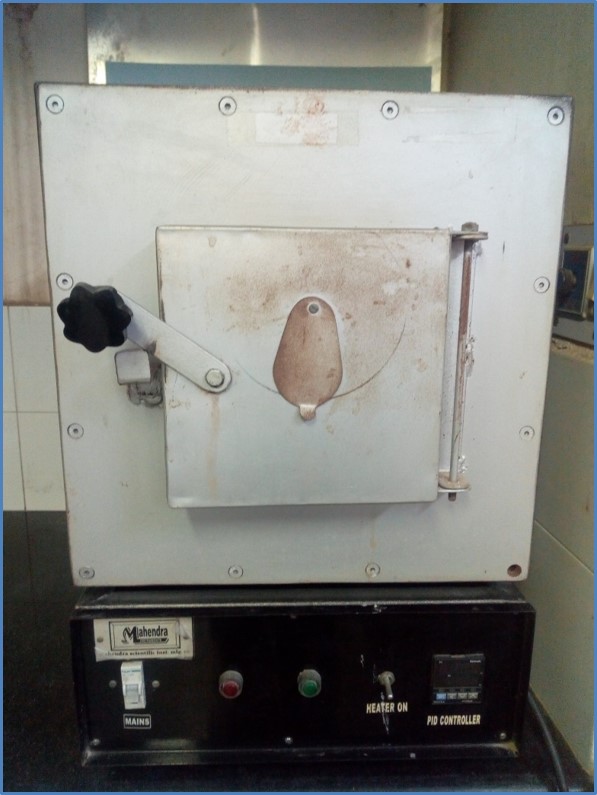

Horizontal Muffle Furnace

● Manufacturer name: Mahendra Scientific Instruments

● Operating temperature upto 800°C

● Programmable heating and cooling cycles

● Control: Digital Auto Temp Control Panel

● Voltage: 220 V

● Frequency: 50 Hz

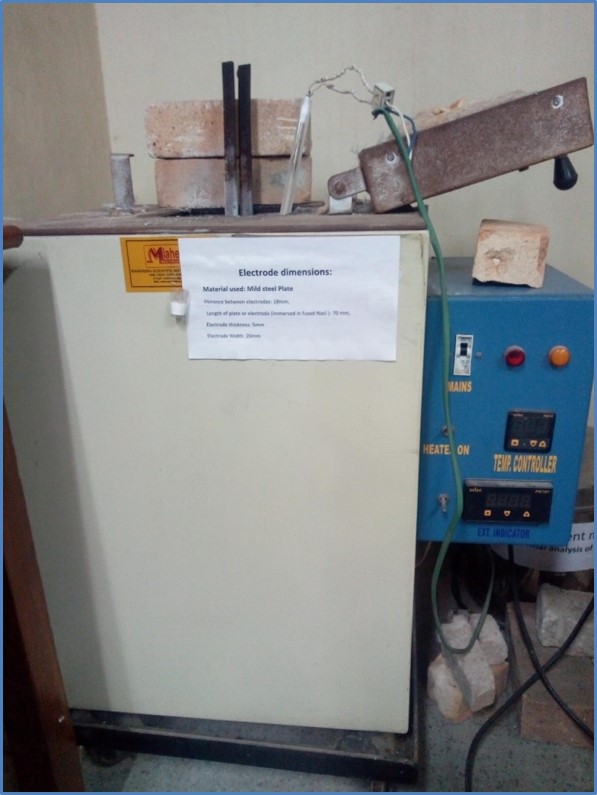

Vertical Muffle Furnace

● Manufacturer name: Mahendra Scientific Instruments

● Operating temperature upto 800°C

● Programmable heating and cooling cycles

● Control: Digital Auto Temp Control Panel

● Voltage: 220 V

● Frequency: 50 Hz

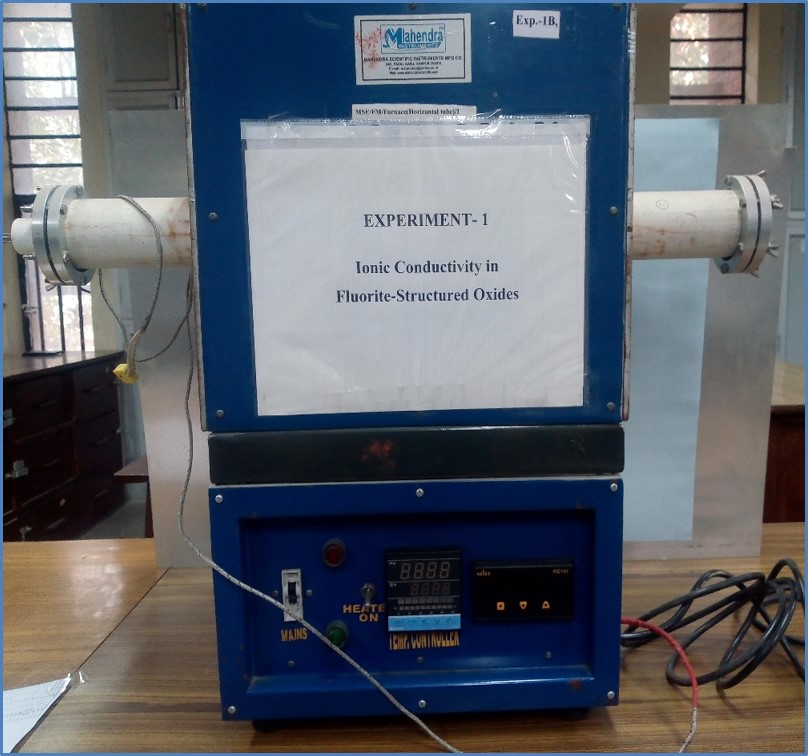

Tube Furnace

● Manufacturer name: Mahendra Scientific Instruments

● Operating temperature upto 700°C

● Programmable heating and cooling cycles

● Control: Digital Auto Temp Control Panel

● Voltage: 220 V

● Frequency: 50 Hz

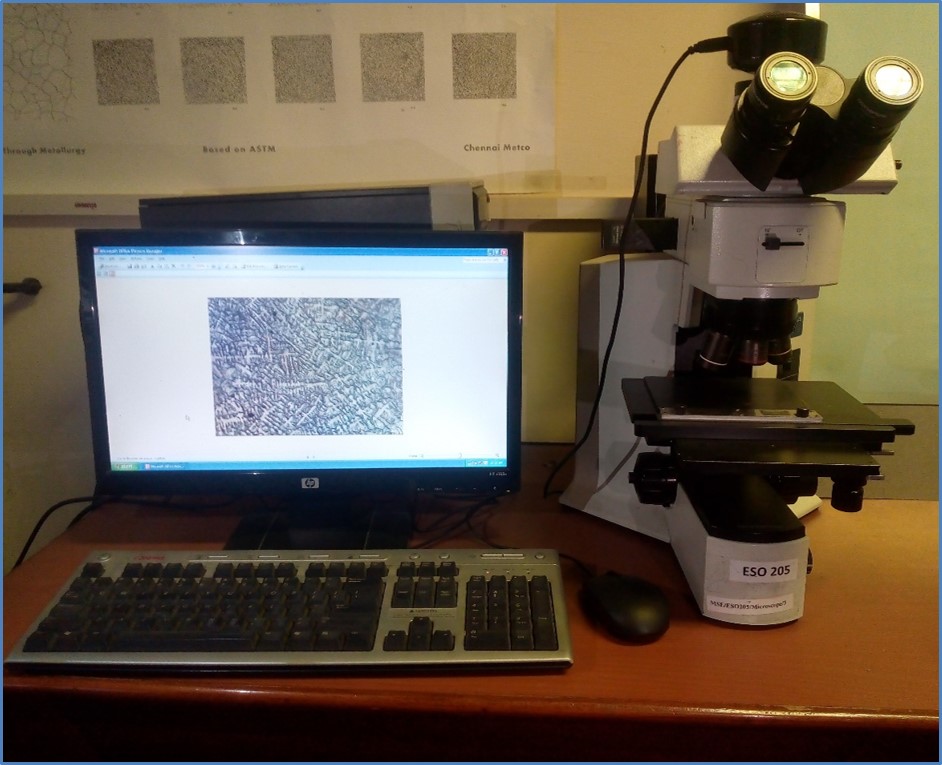

Optical Microscope

● Manufacturer name:Olympus

● Model: BX51M

● Head: Binocular/Trinocular

● Eyepieces: 10x

● Objectives: 5x, 10x, 20x, 50x

● Stage: Mechanical Stage

● Focusing: Coarse/Fine Focus

● Illumination: Halogen Reflected Light

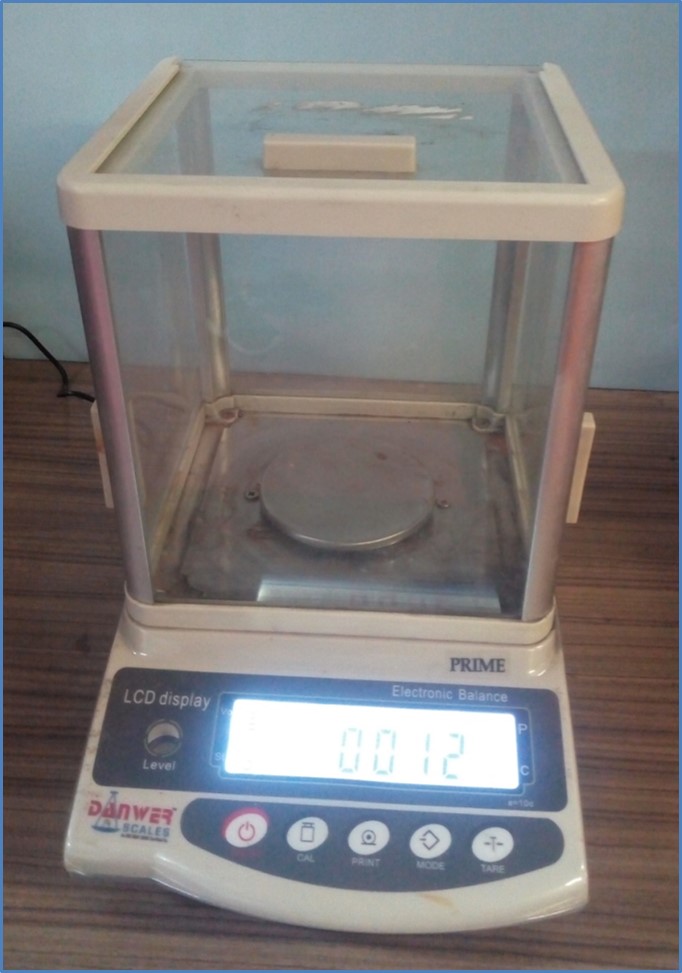

Weighing Balance

● Manufacturer name: Danwer

● Model: HK-JC-220AB

● Range: 0.001 gm to 200 gm

● Power: 9 V DC

● Easy to read LCD Display with backlight

● Automatic internal calibration with built in weight

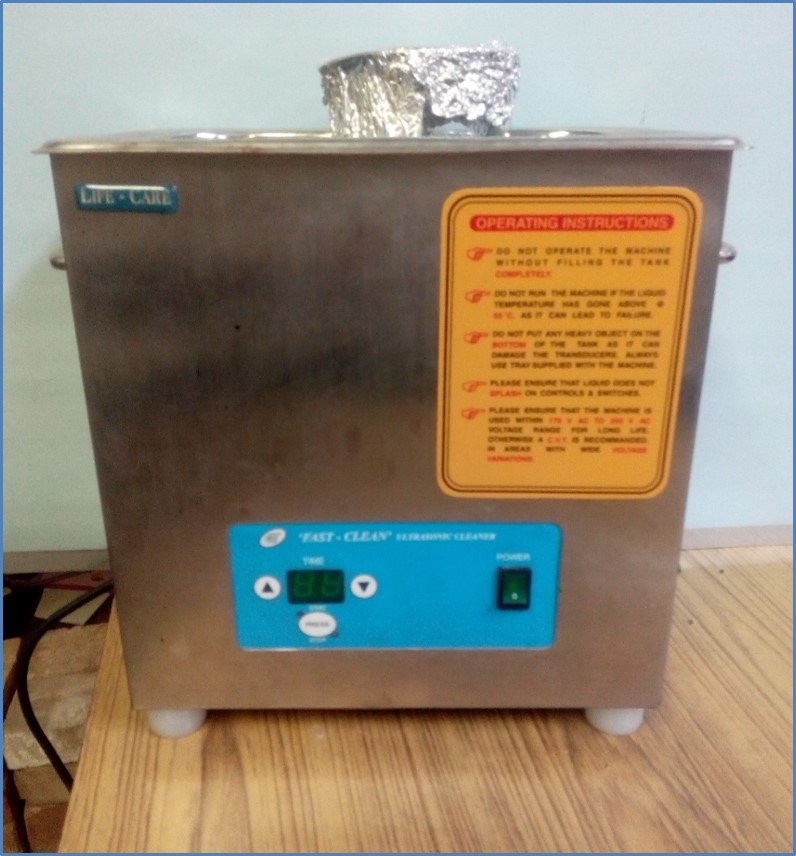

Ultrasonicator

● Manufacturer name: Wensar

● Model: WUC 4L

● Tank Volume (liters): 4L

● Ultrasonic Wattage: 100 W

● Tank Dimension: 235x135x150

● Ultrasonic Frequency: 40 ± 3 KHZ

● Heating: Ambient To 80°C Digitally Controlled (Dual Display)

● Digital Timer: 0 To 60 Minutes

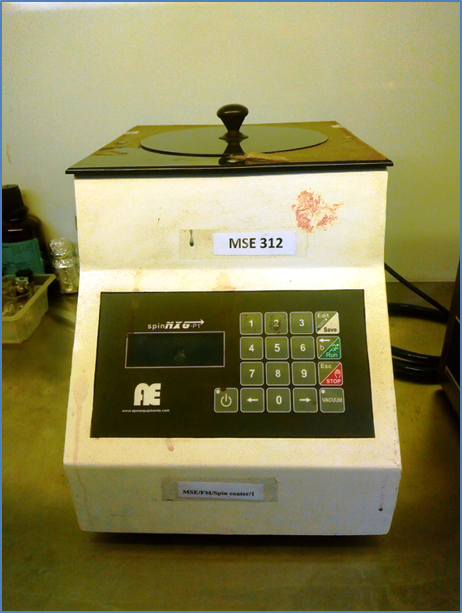

Spin Coater

● Manufacturer name: Apex Instruments

● Model: spinNXG-P1

● Type : Precision controlling through microcontroller.

● Speed range : 100 RPM to 10000 RPM. (Programmable)

● Accuracy : < ±1% error across the full range

● Working Chamber : PTFE coated

● Dimension : 15"x10"x11" (LxBxH)

● Vacuum Suction : Integrated Vacuum release switch

● Display : Protocol Status on LCD Console

● Acceleration : upto 2000rpm/sec (Programmable)

● Wattage : 150

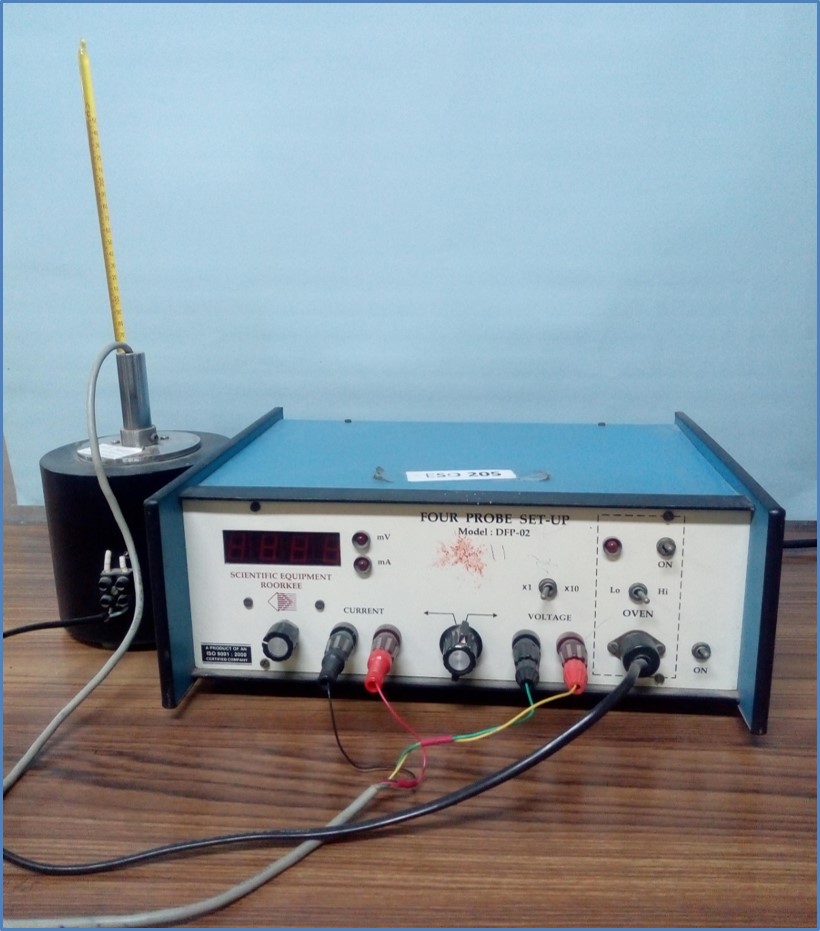

Four Point Probe Setup

● Manufacturer name: SES Instruments Pvt. Ltd.

● Model: DFP-03

● Temperature Range: RT to 200 oC

● The setup consists of following units -
  • Probes Arrangement
  • Sample
  • Oven
  • Four Probe Set-up
    1. Oven Power Supply
    2. Multirange Digital Voltmeter
    3. Constant Current Generator

Keithley power supply

● Manufacturer name: Keithley

● Model: 2200-32-3

● Wide range of power output up to 32V/3A/96W

● 0.03% basic voltage output accuracy and 0.05% basic current accuracy provide quality test data

● Dual line display shows both the programmed and actual values indicating the power status

● GPIB and USB interfaces are standard for convenient automated control

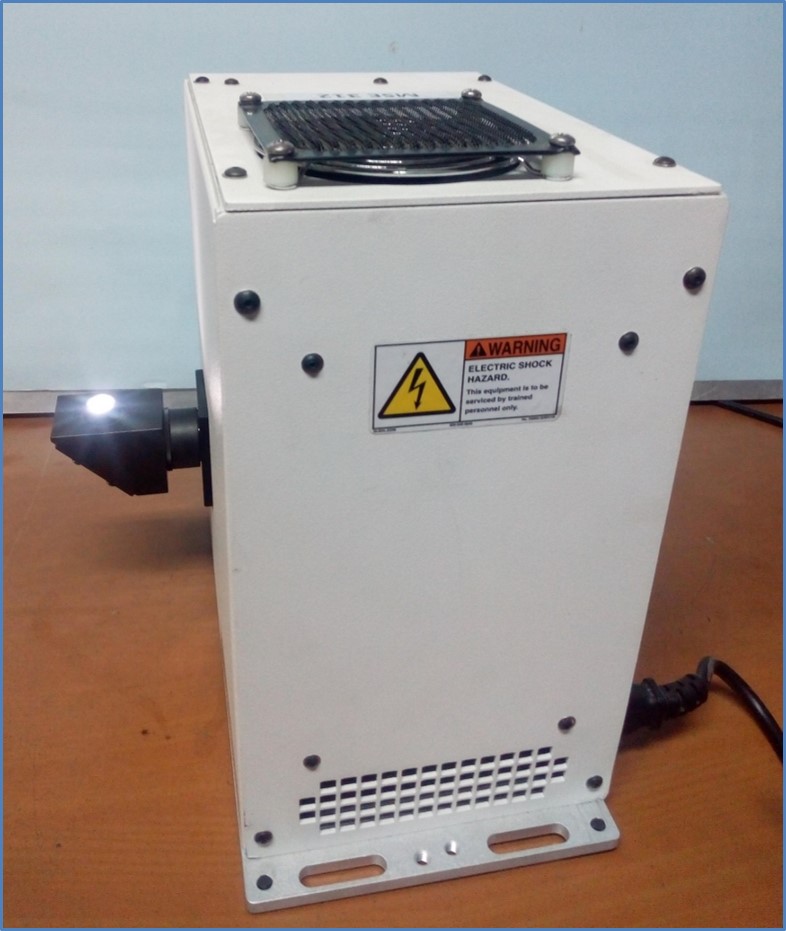

Solar Simulator

● Manufacturer name: ABET Technologies

● Model: 10500

● Power: 1 Sun (1.5 AM)/100 watt/cm2

● Diameter Field: 35 mm

● ASTM, IEC, JIS Class AM 1.5G Output

● Fat F/1.0 Fused Silica Condenser

● DC Xenon Arc Lamp

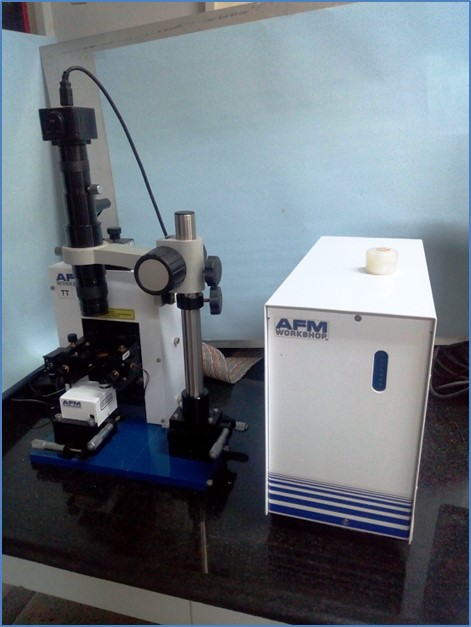

Atomic Force Microscopy

● Manufacturer/Model: TT AFM Workshop

● Sample Sizes: up to 1" X 1" X 1/4"

● Standard Scanning Modes: Vibrating, Non Vibrating

● Scanners: 50 X 50 X 17 microns, 15 X 15 X 7 microns

● Video Optical Microscope: Zoom to 400X, 1.5 micron resolution
